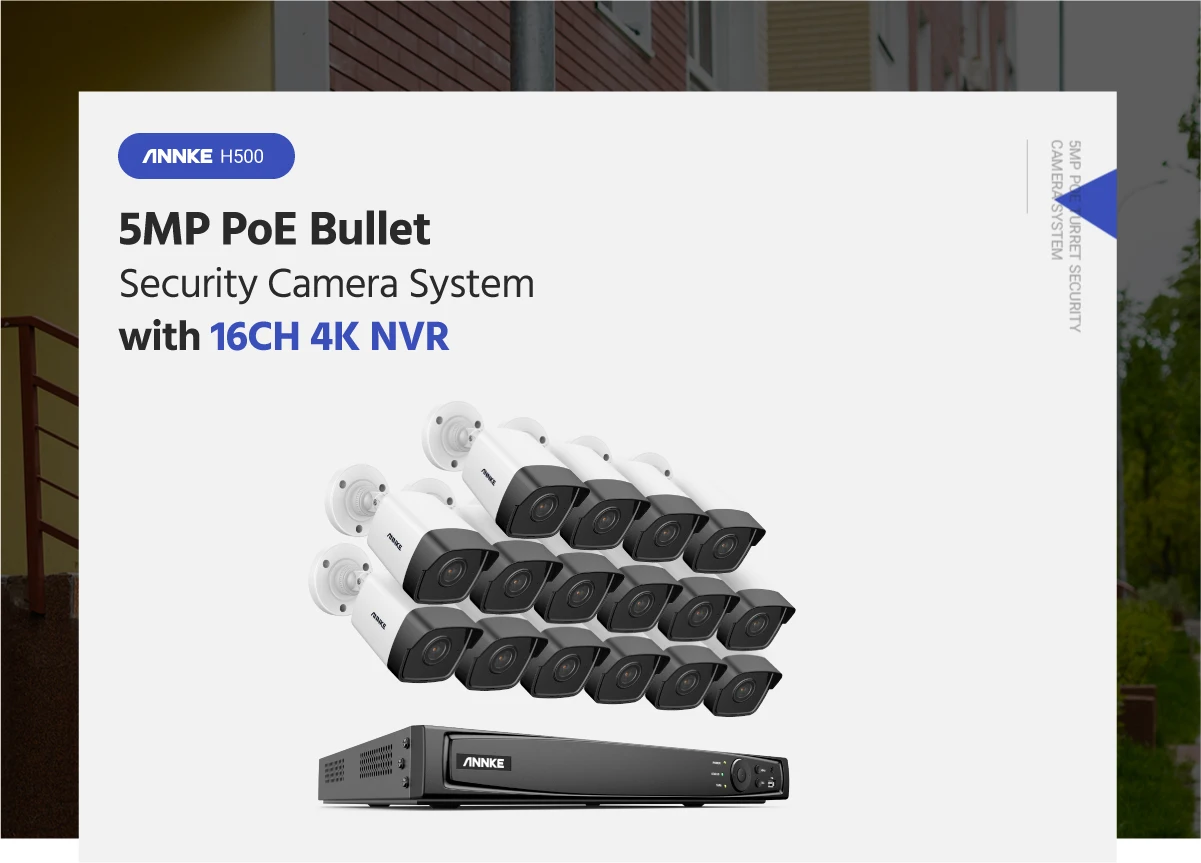

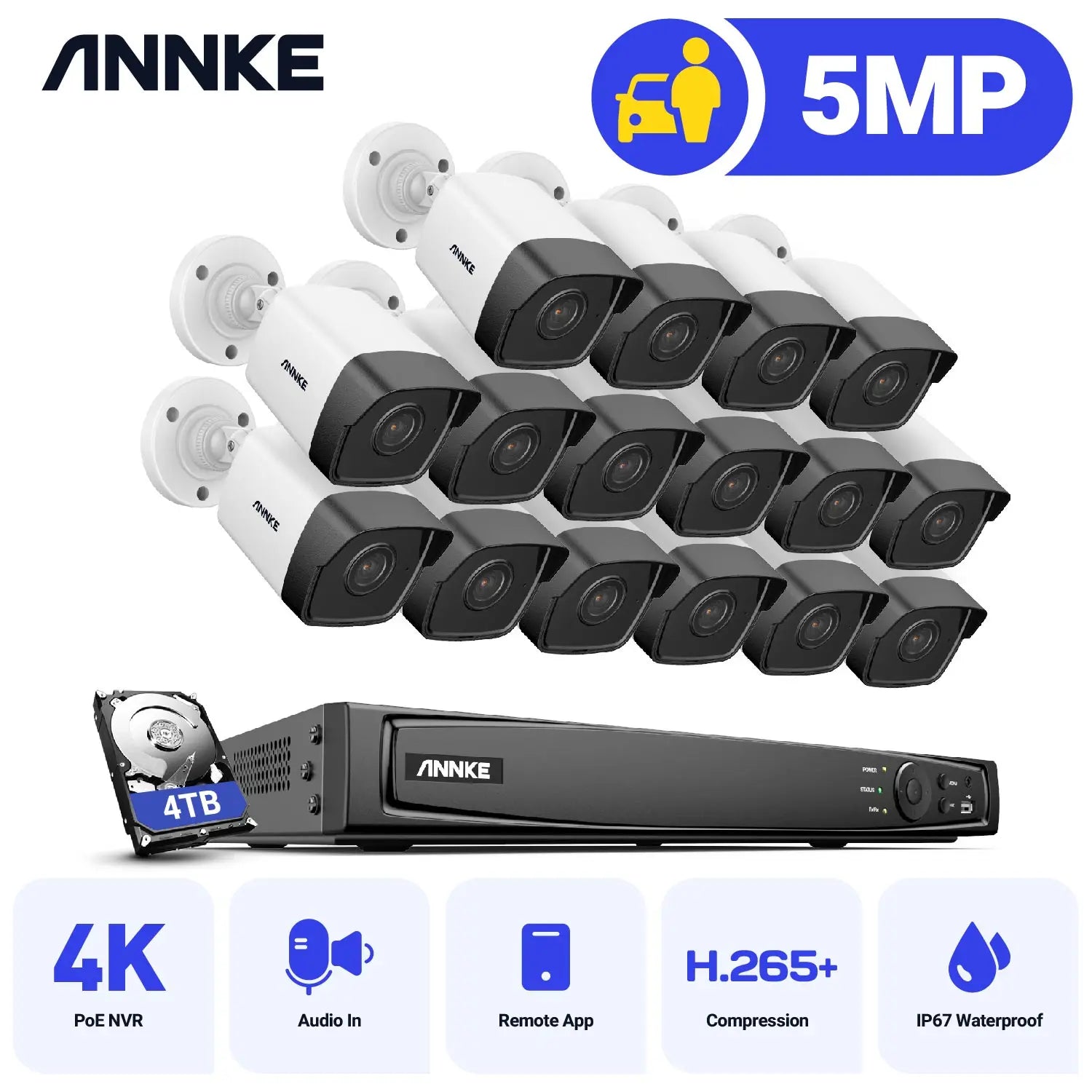

ANNKE H500 16CH 5MP H.265+ HD PoE Network Video Security System 16pcs IP67 Outdoor Bullet POE IP Cameras Audio in PoE Camera Kit
ANNKE H500 16CH 5MP H.265+ HD PoE Network Video Security System 16pcs IP67 Outdoor Bullet POE IP Cameras Audio in PoE Camera Kit
Couldn't load pickup availability
SPECIFICATIONS
Angle of View: 100 degree
Brand Name: ANNKE
Cable Length: 18m
Certification: CE
Housing: Metal and Plastic
Lens: 2.8mm
Model Number: N46PCK+I51DL*16
Number of Infra-Red LEDs: 2 pcs
PCS of Camera: 16pcs
Resolution: 5 MP
Smart home platform: None
TV System: NTSC,PAL
Video Input: 16 Channel
Video Resolution: 5MP(2560 *1920/15fps)
Video compression: H.265/H.264
Weatherproof Rating: IP67

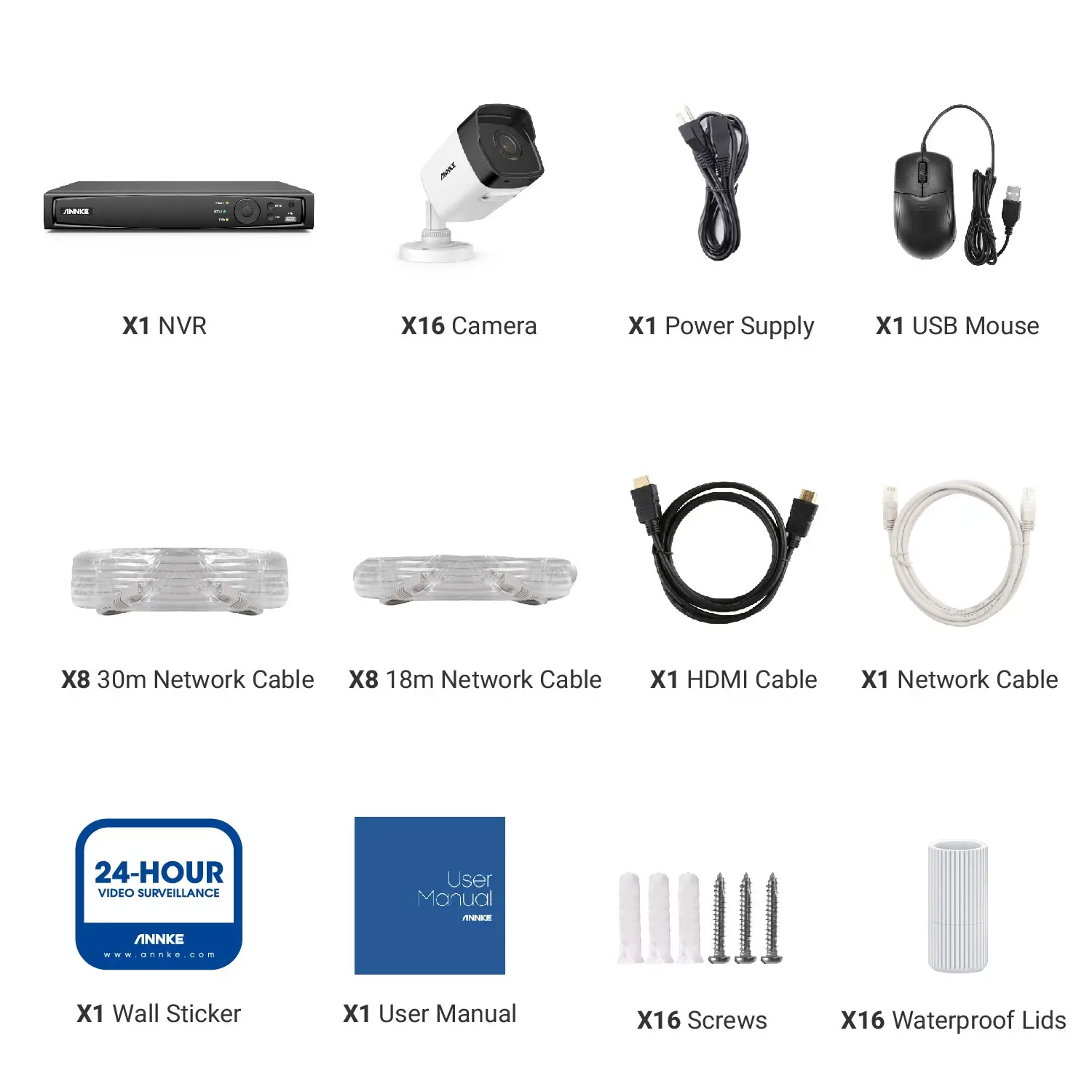

Package List
NVR | ||
Video & Audio |
Video Compression |
H.264+/H.264/H.265/H.265+/MPEG4 |
IP Video Input |
16CH PoE |
|
Video Output |
HDMI up to 4K, VGA up to 1080p |
|
Audio Input/Output |
1/1 RCA |
|
Incoming Bandwidth |
160 M |
|
Max. Recording Resolution |
Up to 8MP (3840 X 2160) |
|
Max. Playback Resolution |
Up to 8MP (3840 X 2160) |
|
Max. Playback Channel |
16CH |
|
Max. Playback Capacity |
1-ch@8 MP (30 fps)/5-ch@1080p (30 fps) |
|
ONVIF Protocols |
Support |
|
Hard Drive |
HDD |
2 SATA Interface |
HDD Capacity |
Up to 8 TB Capacity for each disk |
|
|
Network Interface |
RJ45 X1 (10/100/1000 M) |

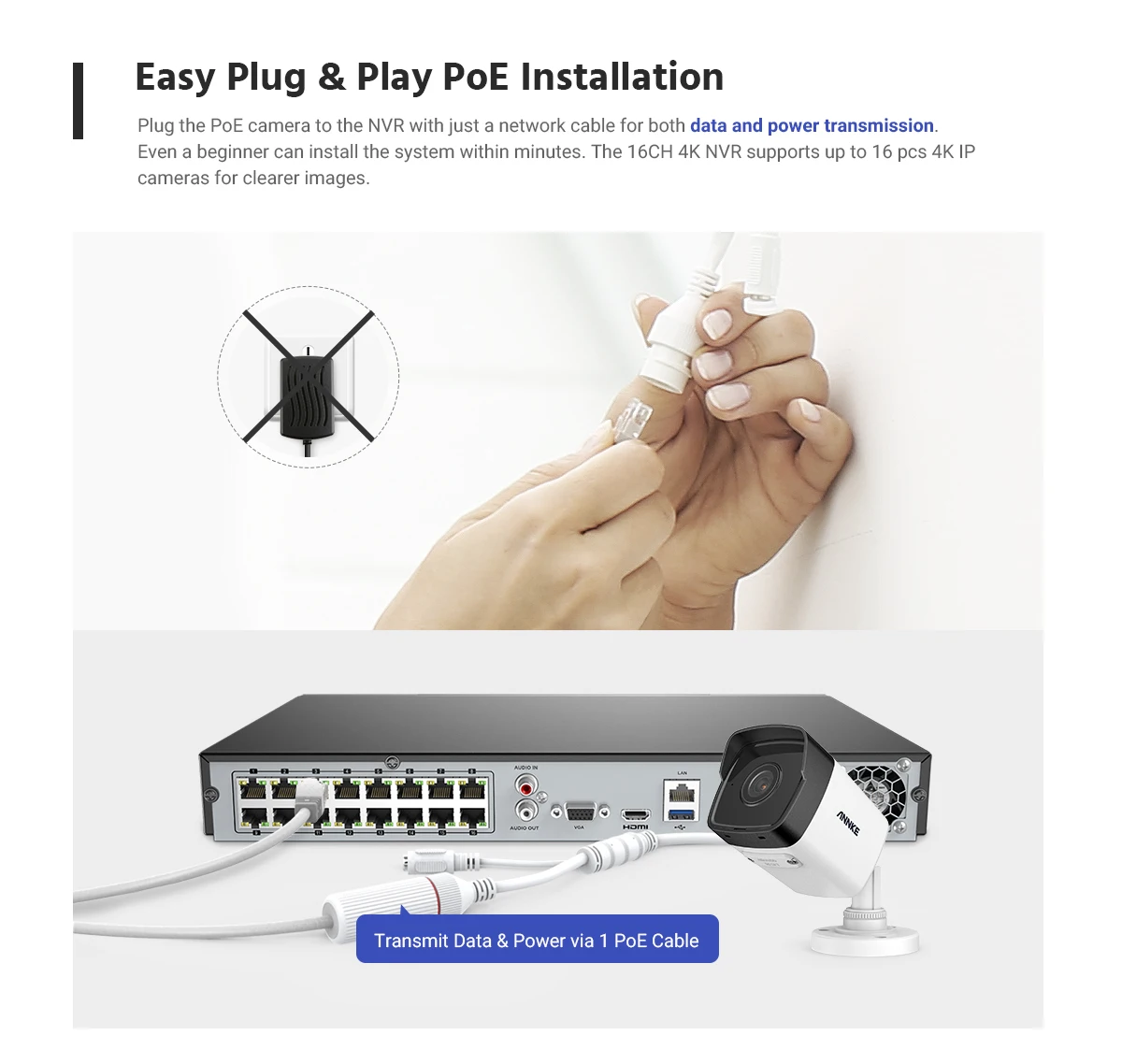

PoE |
16 Ports (IEEE802.3af/at) |
|
Alarm Input/Output |
- |
|
RS485 |
- |
|
USB |
2X USB 2.0 |
|
General |
Operating Power |
AC 100-240 V |
Power Consumption |
≤15 W (Without HDD and PoE) |
|
PoE: Max. 25.5W for Single Port | ||
Working Temperature |
14 °F — 131 °F/-10 °C — 55 °C |
|

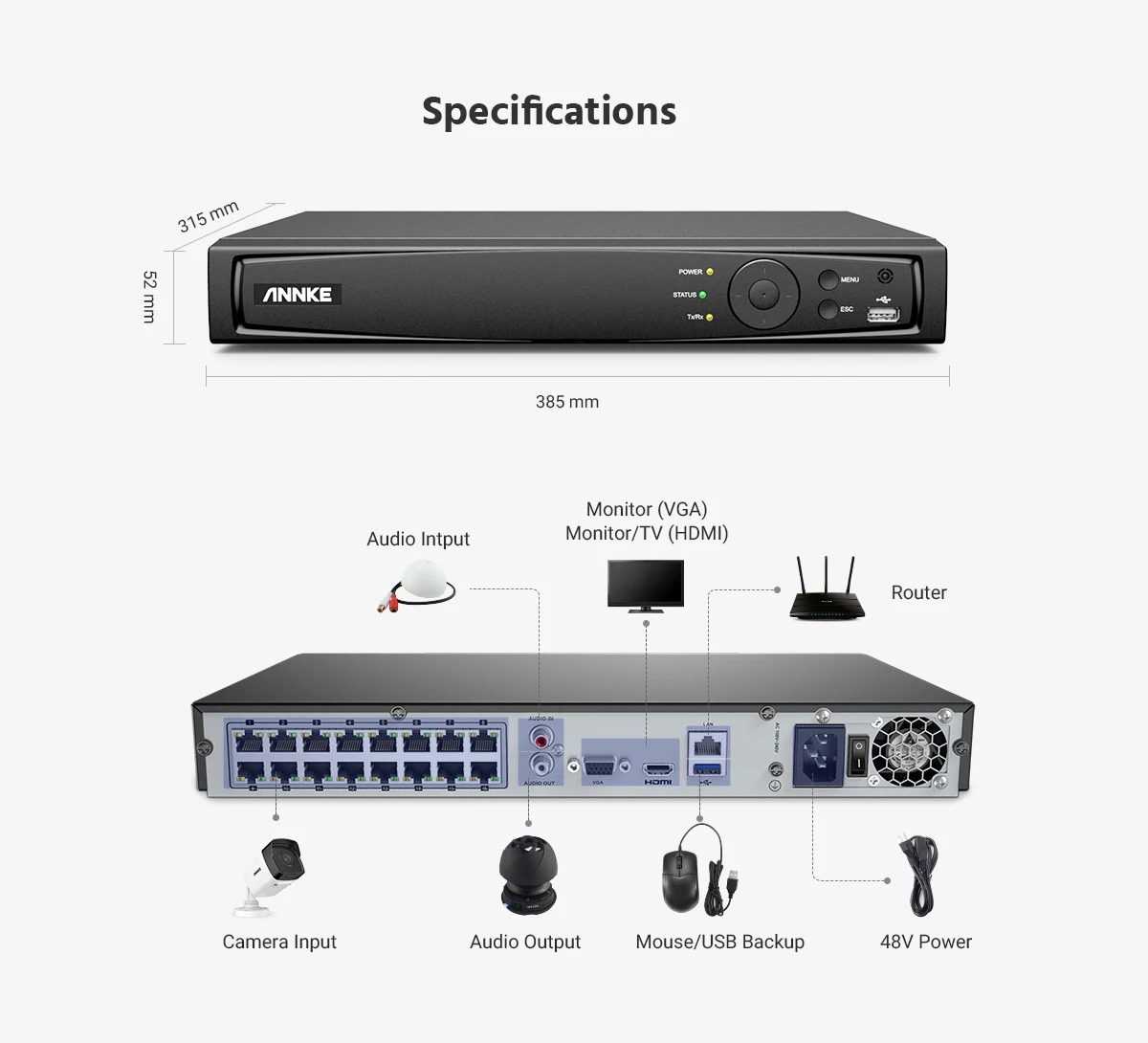

Dimensions (W X H X D) |
15.2” X 12.4” X 2.0”/385 X 315 X 52 mm |
|
Weight (Without Hard Disk) |
6.6 lbs./3 kg |
|
IP Camera | ||
Camera |
Image Sensor |
1/3" Progressive Scan CMOS |
Max resolution |
3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display |
|
Main Stream |
50 Hz: 20 fps (3072*1728), 25 fps ( 1920 X 1080, 1280 X 720) |
|
Substream |
50 Hz: 25 fps (1280 X 720,640 X 480, 640 X 360) |
|
Video Compression |
Main stream: H.265+/H.265/H.264+/H.264 |
|
Video Bitrate |
32 Kbps - 6 Mbps |
|
Audio Compression |
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC |
|
Audio Input |
Built-in Microphone, record with audio |
|
Lens |
2.8 mm |
|
Min. Illumination |

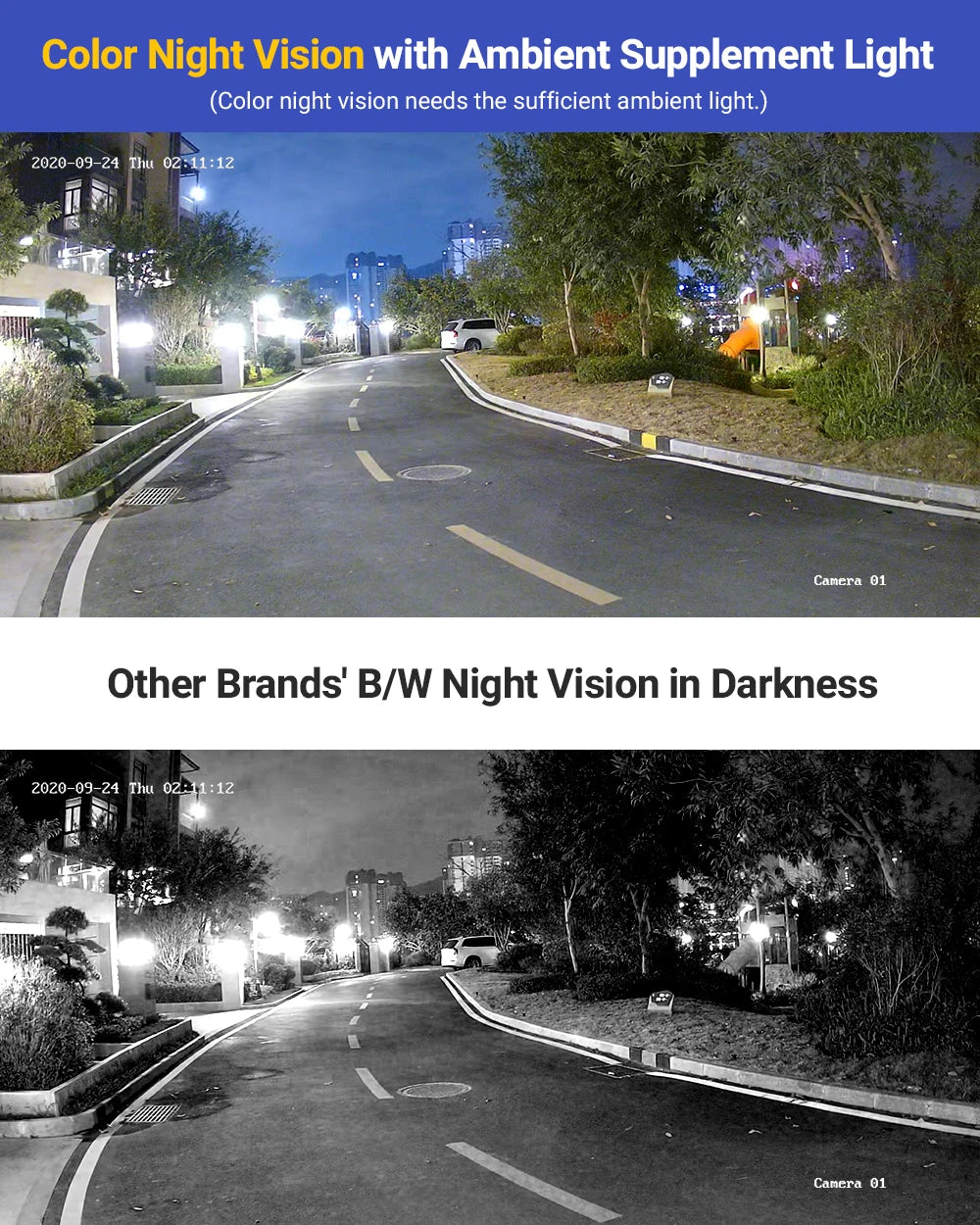

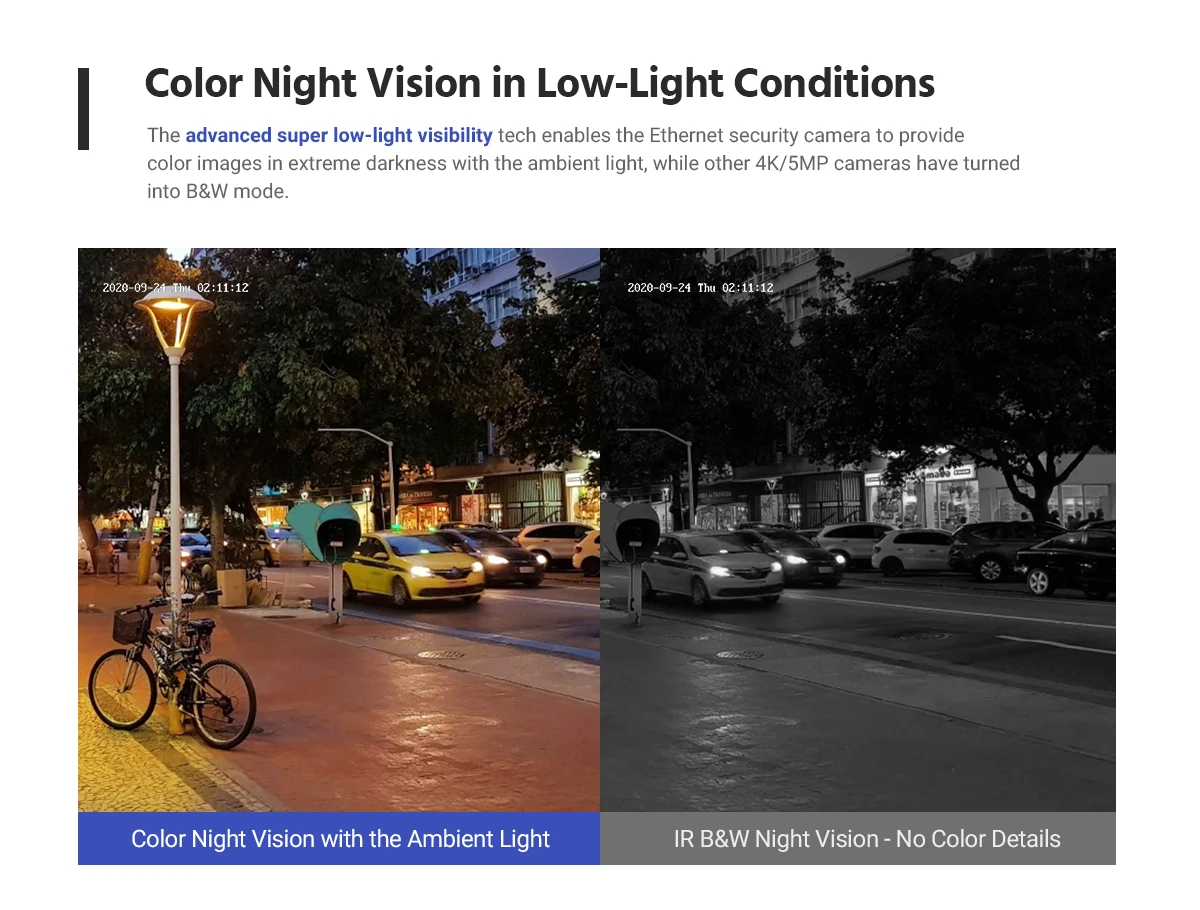

Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR |
|
Angle of View |
Horizontal FOV 99°, vertical FOV 55°, diagonal FOV 116° |
|

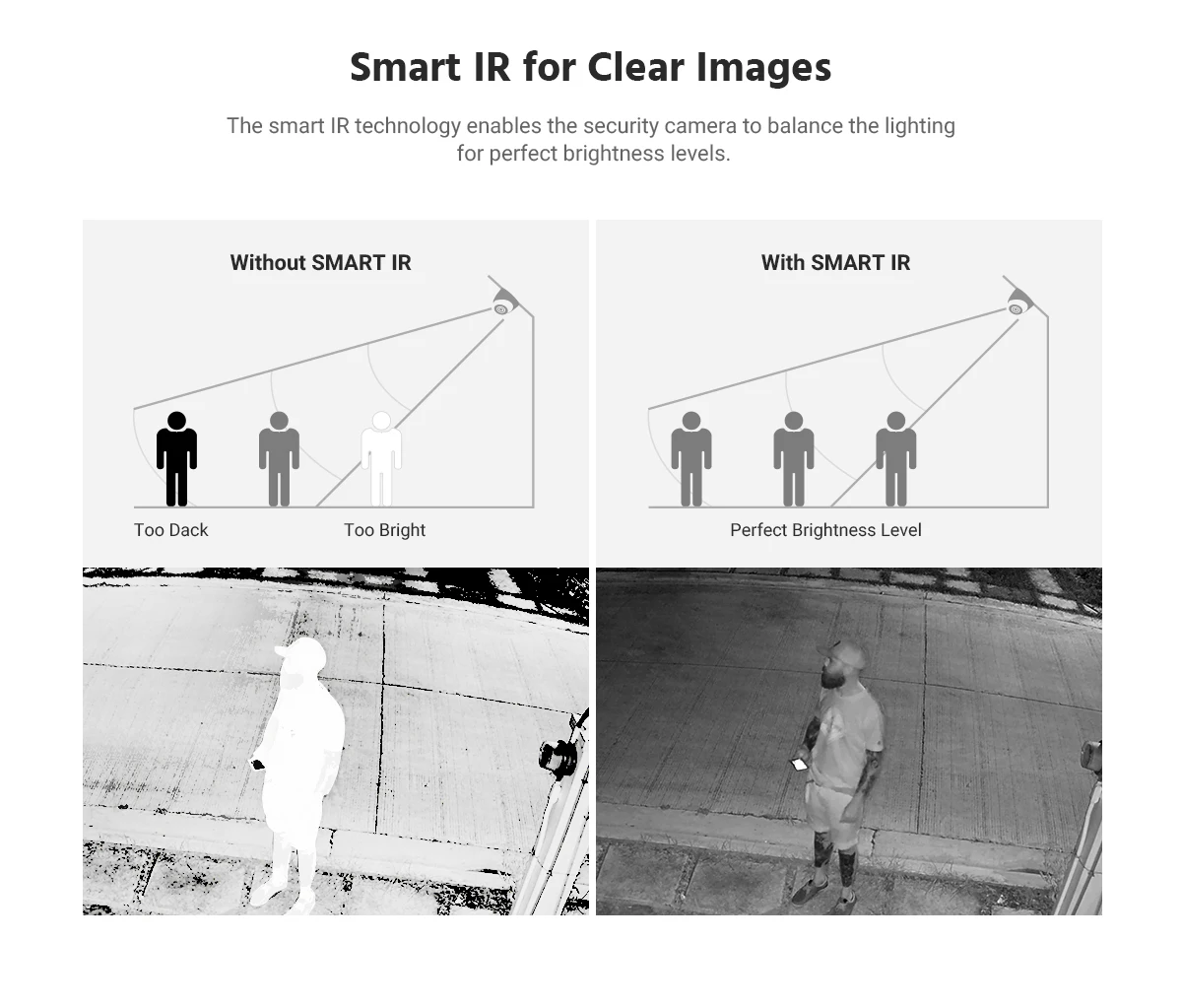

Number of Infrared LEDs |
2 pcs |
|
Night Vision Distance |
Up to 100 ft/30 m |
|
Motion detection 2.0 |
Supoort, include Human & Vehicle detection |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Wide Dynamic Range |
120 dB WDR |
|
Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, SMTP |
|
ONVIF |
Support |
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
Privacy Mask |
4 programmable polygon privacy masks |
|
General Function |
Mirror,rotate,password protection,video tampering alarm, remote access |
|
Ethernet |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
General |
Housing |
Metal & Plastic |
Color |
White & Black |
|
Storage |
Built-in microSD/SDHC/SDXC Slot, up to 256 GB |
|
Hardware Reset |
Yes |
|
Operating Power |
DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W |
|
Operating Temperature |
-22 °F – 140 °F/-30 °C – 60 °C |
|
Indoor/Outdoor Use |
Indoor/Outdoor |
|

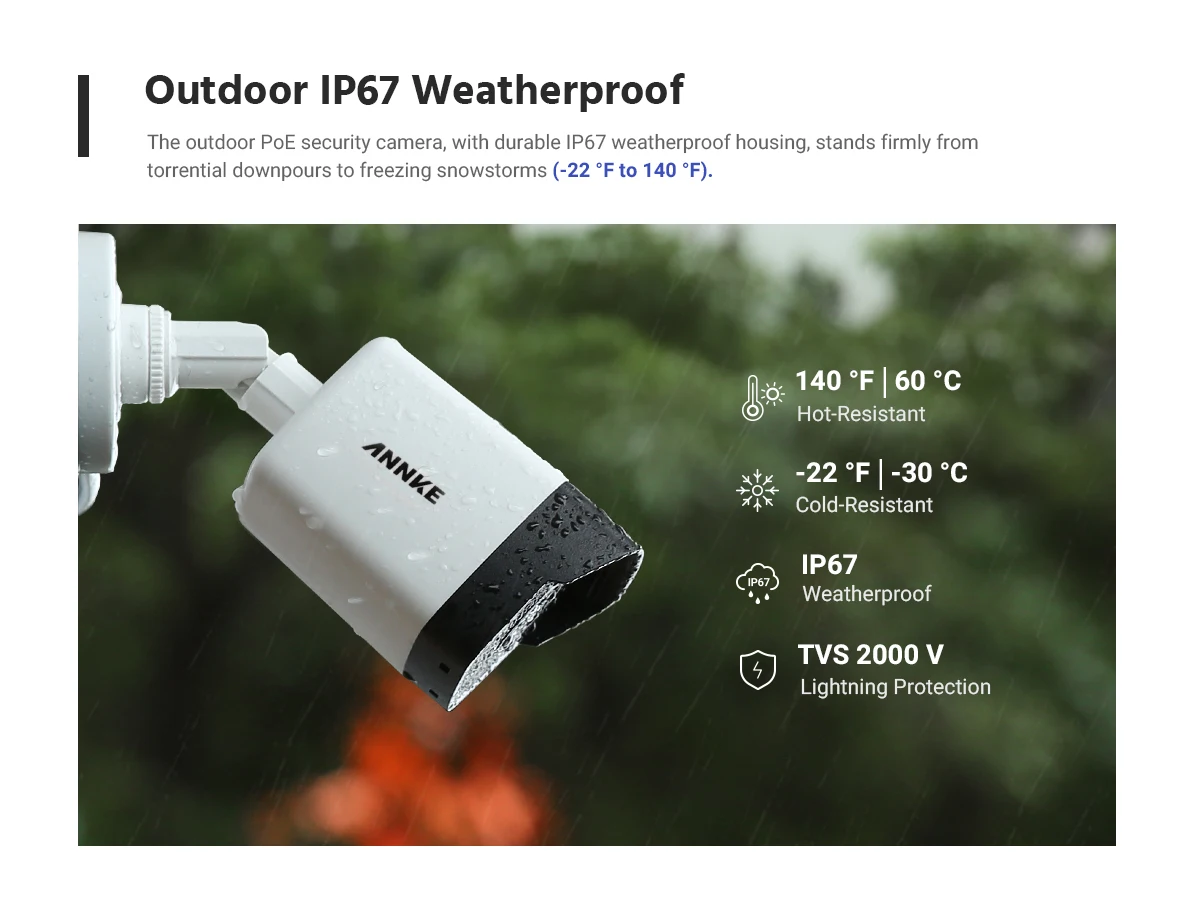

Interface Protection |

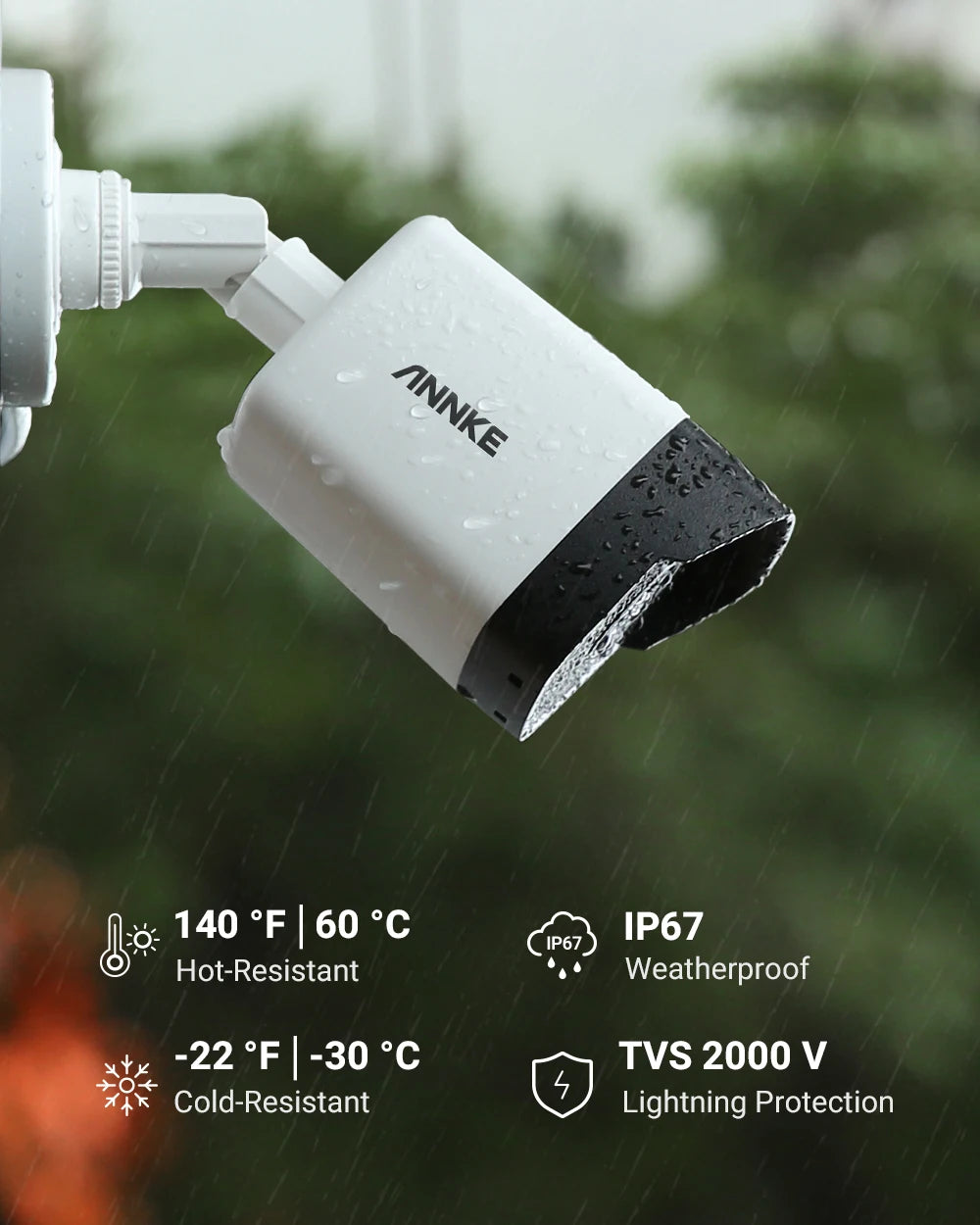

IP67, TVS 2000 V Lightning Protection, Surge Protection and Voltage Transient Protection |
|
Dimension (L X W X H) |
7.0" X 2.6" X 2.7"/177.6 X 66.2 X 67.8 mm |
|
Weight |
0.6 lb./270 g |
|
