Basic
Information:

CPU

Intel

CPU install
Method

BGA1440

TDP

45W

Motherboard

120 x 120mm
customized size

Code Name

Intel Coffee
Lake

Chipset

Intel 300 series
PCH

Memory

2 x SO-DDR4
SDRAM Slot, up to64GB

Dual Channel,
DDR4 2133/2400/2666/2933260pin

OS

Windows
10/Linux/Ubuntu supported

PXE

Yes

Audio

Azalia Codec
support 2.1 channel output

High Definition
Audio Controller

Network

Onboard
2*Realtek 8111H Gigabit Ethernet NIC

10/100/1000
BaseT LAN

Video

Intel® UHD
Graphics

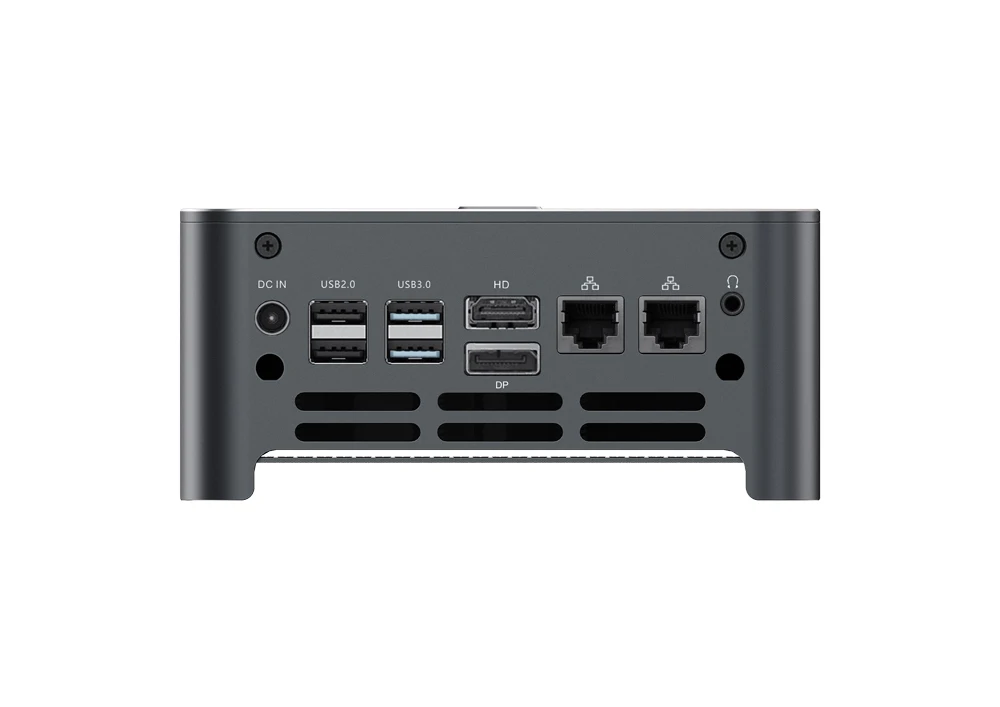

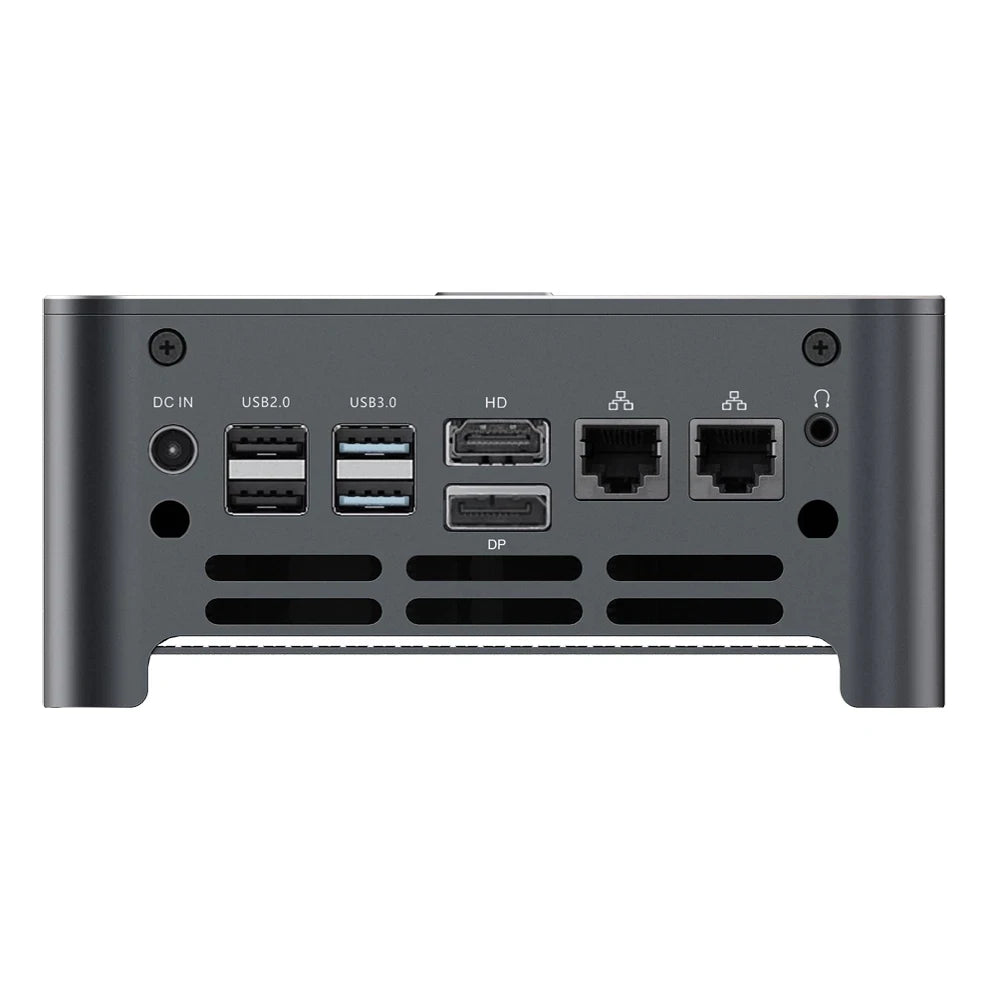

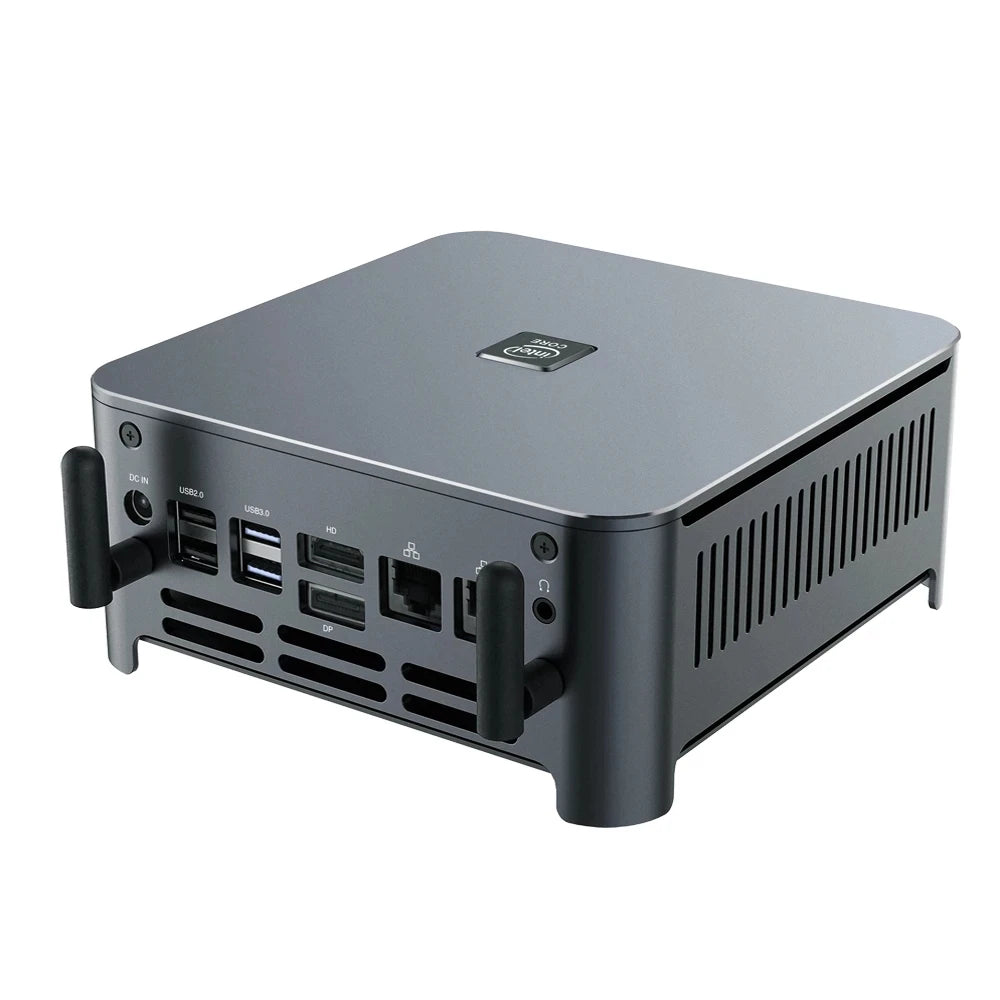

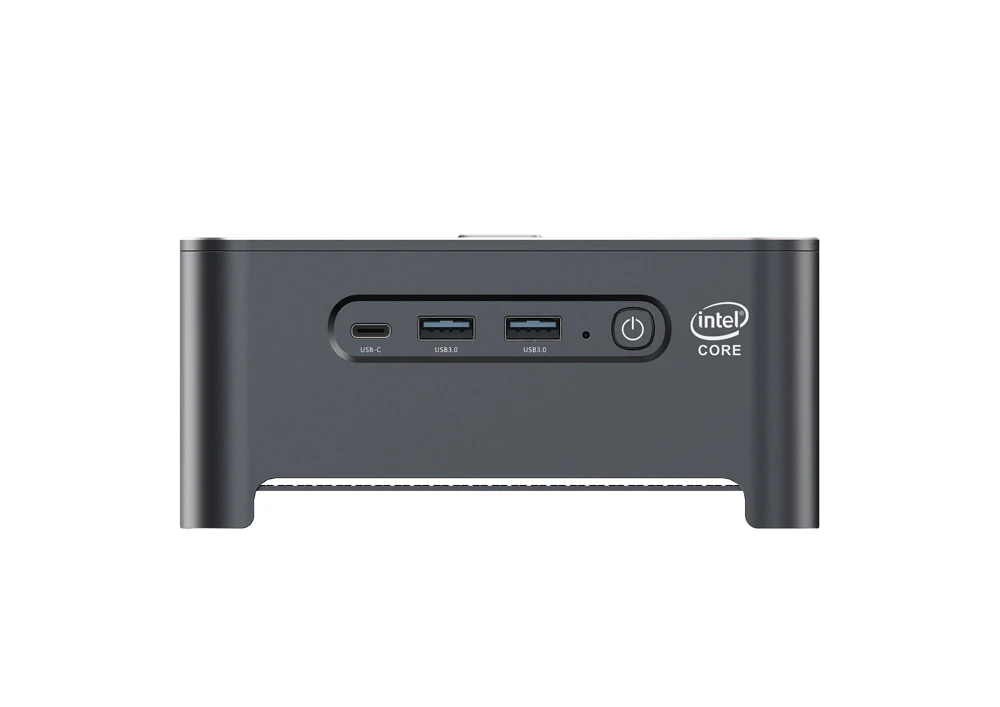

Input/output port

Switch

1 x Power On/Off
Switch

Power

1 x 19V DC In

LED

1 x LED

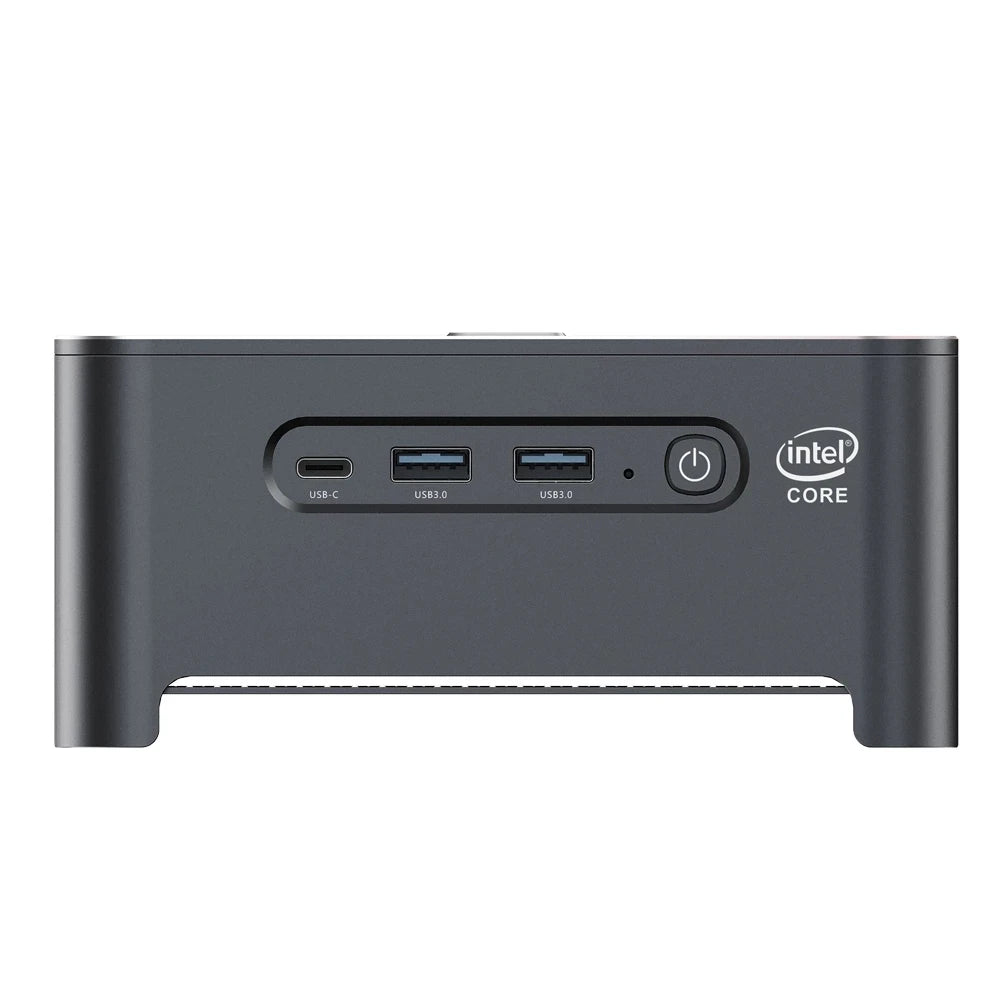

USB

4 x USB3.0, 2 x
USB2.0

USB-C

1 x Type-C
USB3.1

Display

1 x DP, 1 x
HDMI, 1 x Type-C

LAN

2 x RJ45 Giga
LAN

Audio

1 x
Audio(MIC&SPK)

Others

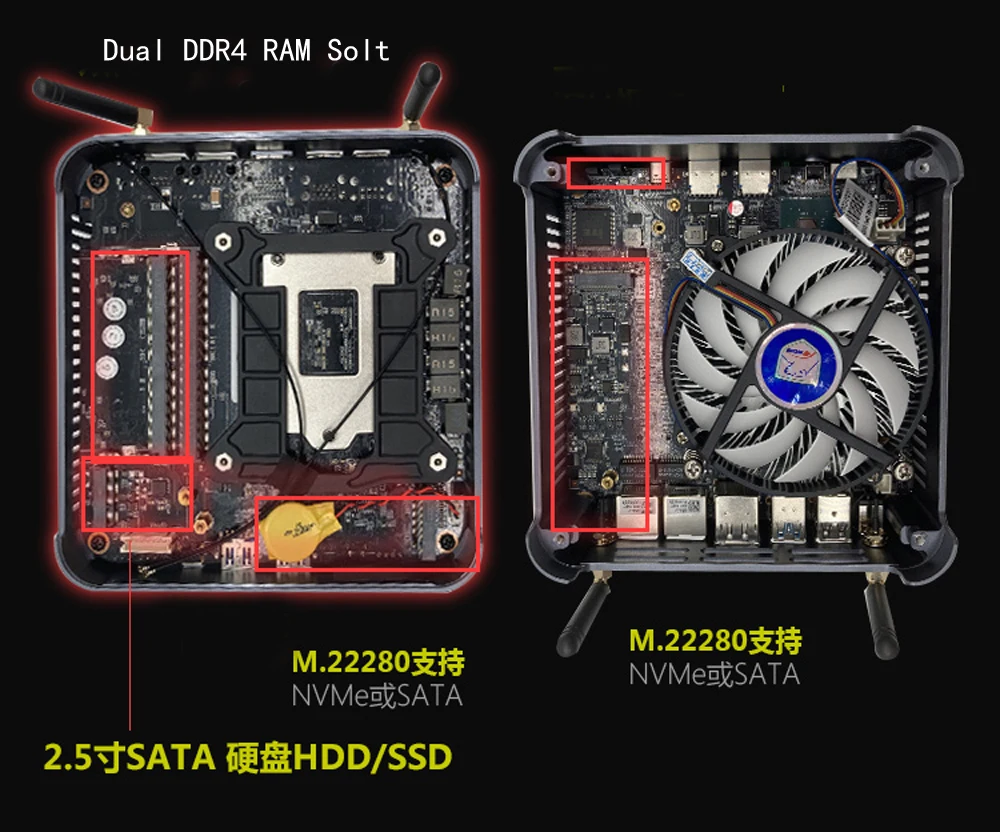

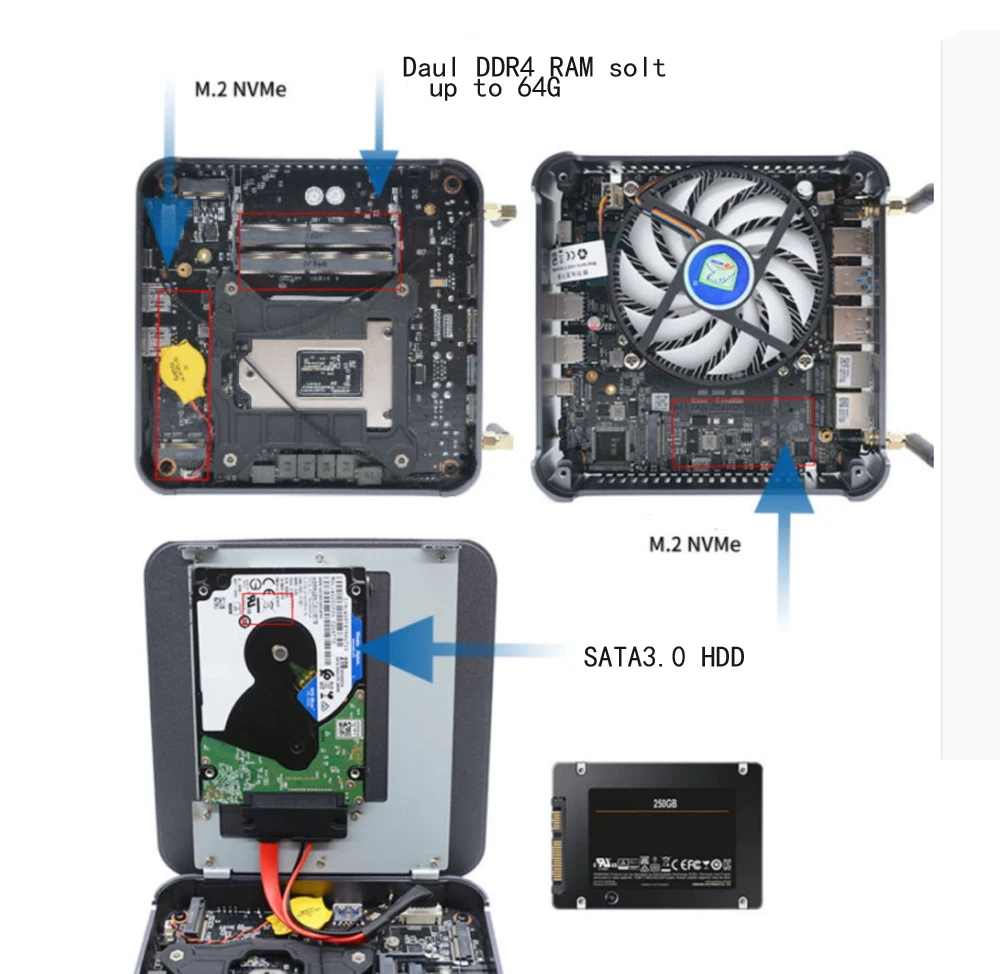

Storage

M.2

1 x M.2 slot for
M.2 NGFF 22*80, up to 2TB(Only NVME), support 32Gb/s

1 x M.2
slot for M.2 NGFF 22*80, up to 2TB(NGFF/NVME), support
32Gb/s,support intel
optane technology

SATA

1 x SATA3.0 slot
for 9.5mm SATA HDD or SSD, up to 3TB, support 6Gb/s

Wi-Fi

Module

2 x M.2 NGFF
2230 slot for Wi-Fi module

Antenna

2 x inner RF
cables and 2 x external antennas

Power and
Working Environment

Input

DC100-240V
AC/50-60Hz

Output

DC +12V~+19V,
recommend 19V/3~5A

Operating
Temperature

0/70 Centigrade

Storage
Temperature

-20/+80
Centigrade

Relative
Humidity

0%~90%
(non-condensing)

Product
Dimension & Details

Size

146*150*66mm

Weight

Net 1.1kg, Gross
2.5kg

Shell

Brushed Gray
color aluminum alloy, a film covered on surface

Cooling Mode

Power Cooling
Fan

Functions

Support PXE,
AWAL, RTC

Package Content

Standard

1xMini PC,
1xPower Adapter, 1xPower Cord, 1xScrews Bag, Wi-Fi antennas, 1xHDMI cable,
1xUser Manual

Optional

1xMini DP
to VGA adapter
