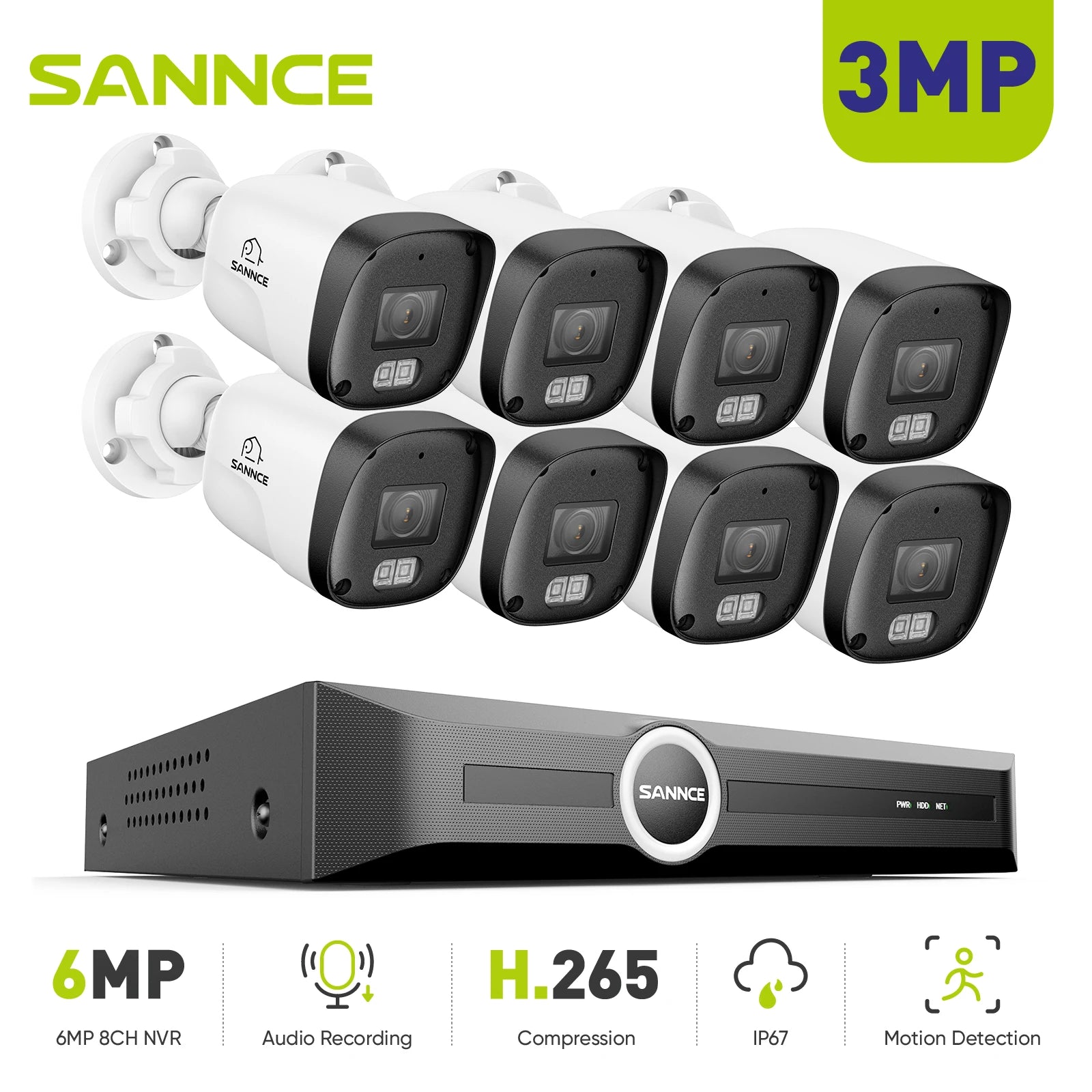

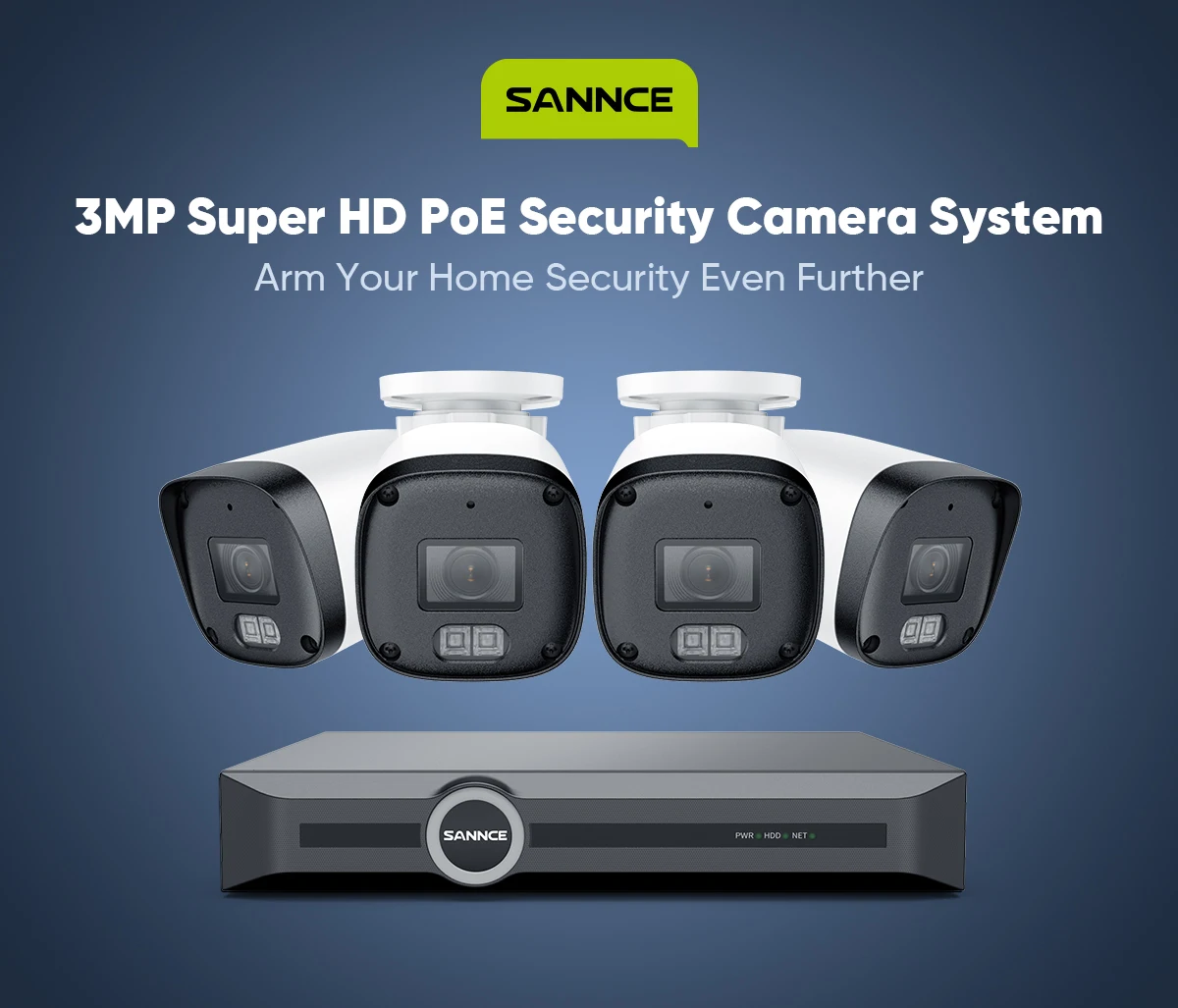

SANNCE H.265 3MP poe camera security system 5MP 8CH NVR IP Camera Audio Outdoor Onvif Night Vision security camera system kit

SANNCE H.265 3MP poe camera security system 5MP 8CH NVR IP Camera Audio Outdoor Onvif Night Vision security camera system kit

$341.99 USD
$0.00 USD $341.99 USD
Sale Sold out
Shipping calculated at checkout.
Color
Ships From
Build-in HDD

SPECIFICATIONS



Brand Name: SANNCE



Cable Length: 30m,18m

Certification: CE,RoHS



Model Number: N98PBM-71EQ



PCS of Camera: 4PCS,6pcs,8PCS

Resolution: 3 MP

Smart home platform: Other

TV System: NTSC,PAL

Type 1: poe camera

Type 2: poe video surveillance

Type 3: poe surveillance kit

Video Input: 16 Channel



NVR Key features

· Up to 8-ch IP camera accesses

· Incoming/Outgoing bandwidth: 60Mbps/40Mbps

· S+265, H.265, S+264, H.264 video formats

· Max. decoding capability: 6MP(30fps)×1 or1080P(30fps)×4

· 4-ch synchronous playback

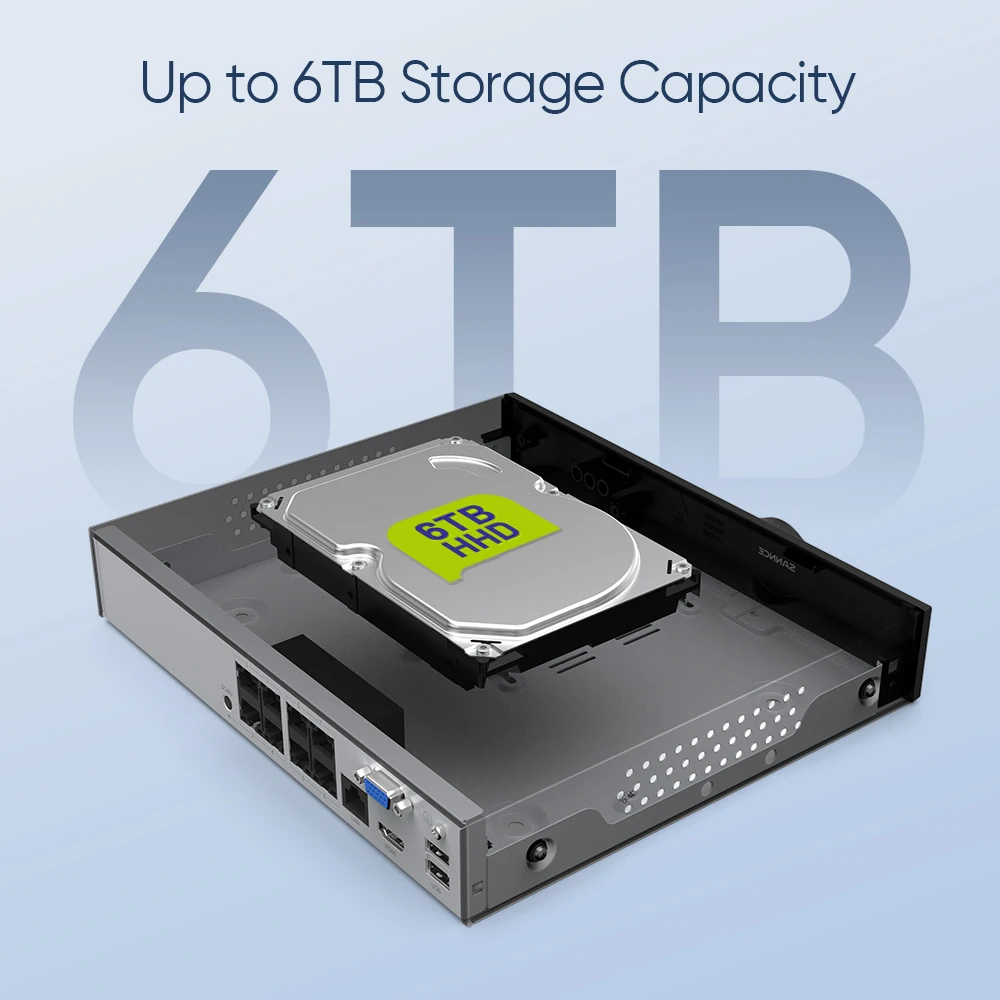

· Up to 6 TB capacity for each HDD

· Simultaneous HDMI and VGA outputs

· HDMI output at up to 1080P resolution

· 1×RJ-45, 10/100 Mbps self-adaptive Ethernet port

· PoE interface, 8×RJ45, 10/100 Mbps self-adaptive Ethernet port

· S+ 265 compression effectively reduces the storage spaceby up to 75%

· Support cloud upgrade

. APP:SANNCE Life

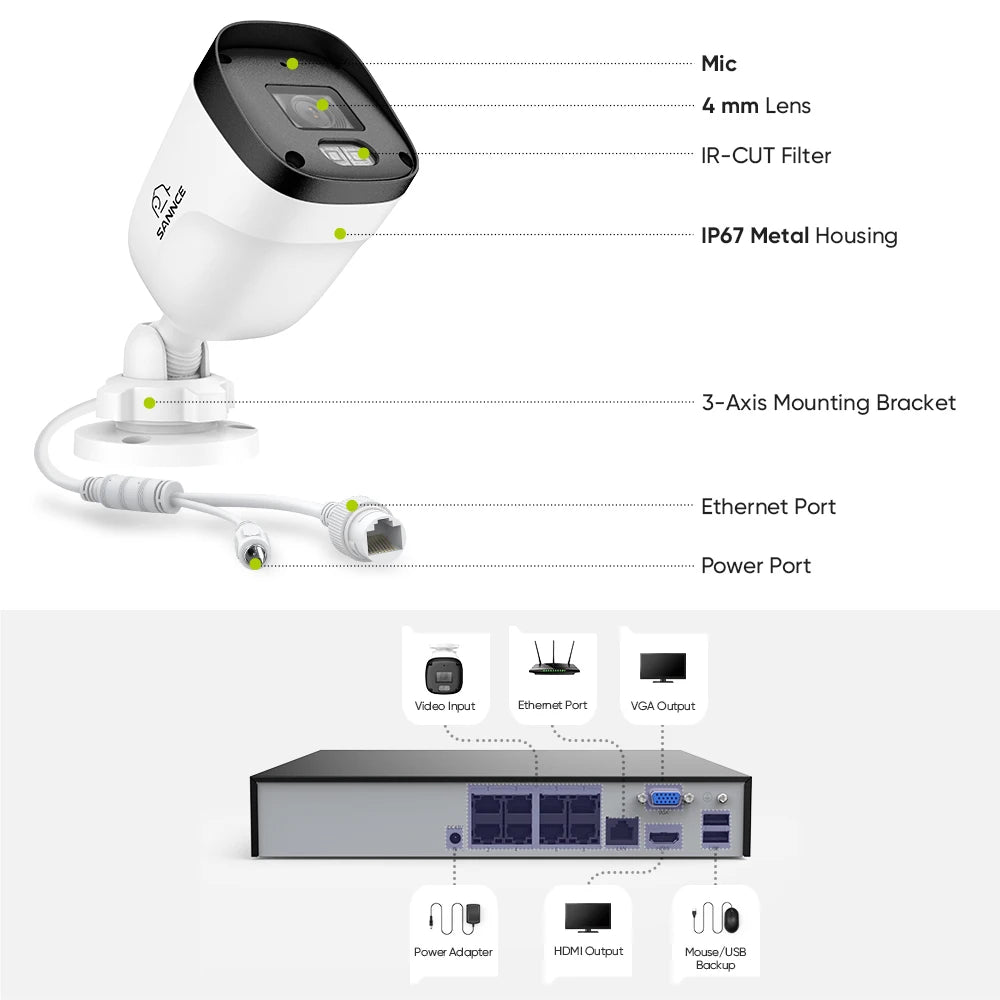

POE Camera Key features


★ 3MP IR Network Bullet Camera with audio input
★4mm lens brings everything back to life
★Efficient S+265 compression technology
★ Up to 100ft night vision with Smart IR
★Clear day and night vision with 3D DNR and DWDR
★ Built-in Microphone, record with audio
★ Supports Motion Detection
★ Supports cloud upgrade and mobile app
★ IP67 dustproof and waterproof

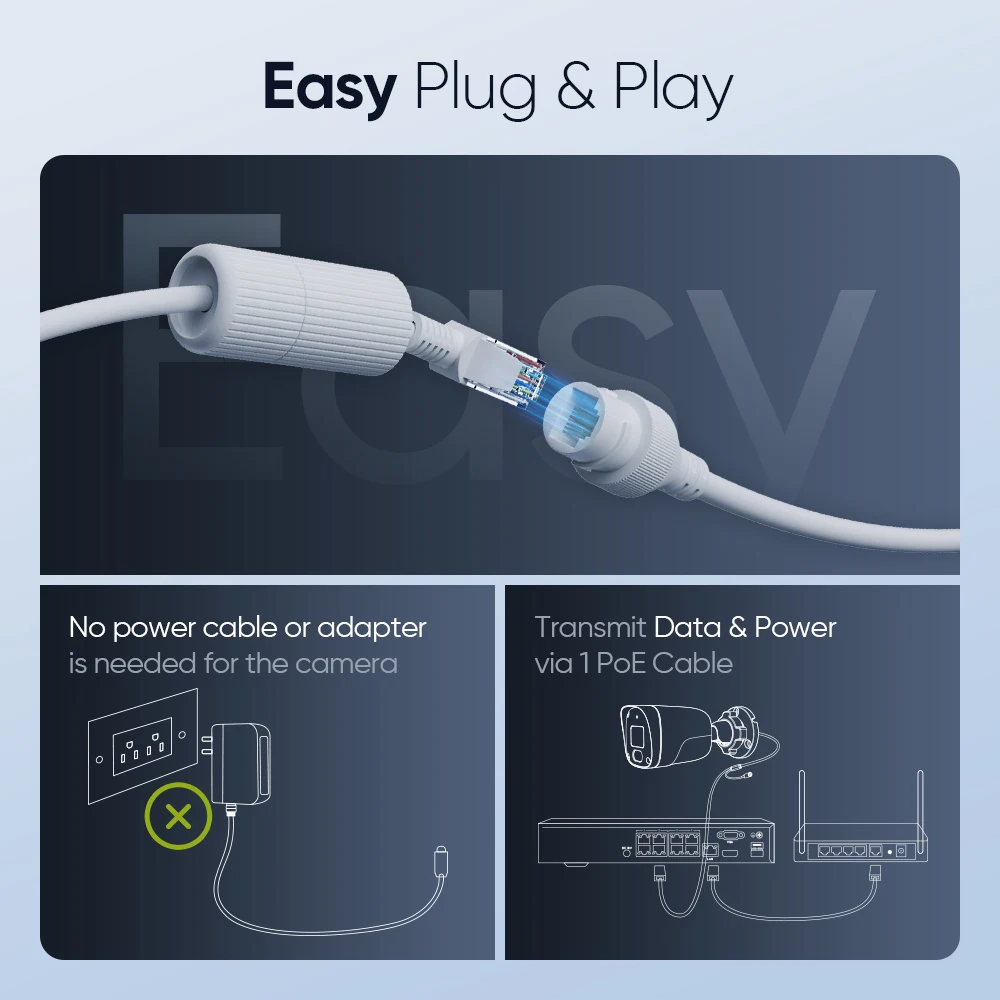

★ POE power supply


Full HD 2K Crystal Resolution


Experience crystal-clear visuals with our 2K/3MP high-definition camera, boasting a resolution of 2304×1296. It offers 1.5 times the clarity of 1080P and triples the sharpness of 720P. Equipped with a 1/2.7" Progressive Scan CMOS sensor, it ensures crisp images both day and night.Smart Motion Detection


Supports IPCs with motion detection capabilities, reducing false alarms and improving the accuracy and reliability of surveillance. Important events are not missed.In-Built Microphone


Our device, equipped with a built-in high-sensitivity microphone and advanced environmental noise filtering technology, can capture clear audio while recording video.S+265 Compression Technology


Utilizes S+265 compression algorithm to reduce storage space by up to 75%. This allows the same capacity hard drive to store longer recordings, reduces the frequency of hard drive replacements, and minimizes storage costs. It also decreases network transmission buffering, improving recording efficiency.




Model Number

N98PBM

NVR

Video & Audio

Decoding Format

S+265; H.265; S+264; H.264

IP Video Input

8CH PoE

Video Output

HDMI: 1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz), 1440×900(60Hz),
(1080P)1920×1080(50Hz/60Hz),independent output

VGA: 1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz), 1440×900(60Hz),
(1080P)1920×1080(50Hz/60Hz)

Audio

G711A; G711U; ADPCM_DIV4

Incoming/outgoing Bandwidth

60/40 Mbps

Max Recording Resolution

Up to 6MP@30fps(Frame rate depends on IP camera)：
6MP(30fps)×1, 5MP(30fps)×1, 4MP(30fps)×2, 3MP(30fps)×2, 1080P(30fps)×4, 720P(30fps)×8,
4CIF(30fps)×8

Max Playback Resolution

Up to 6MP@30fps(Frame rate depends on IP camera)：
6MP(30fps)×1, 5MP(30fps)×1, 4MP(30fps)×1, 3MP(30fps)×2, 1080P(30fps)×3, 720P(30fps)×4

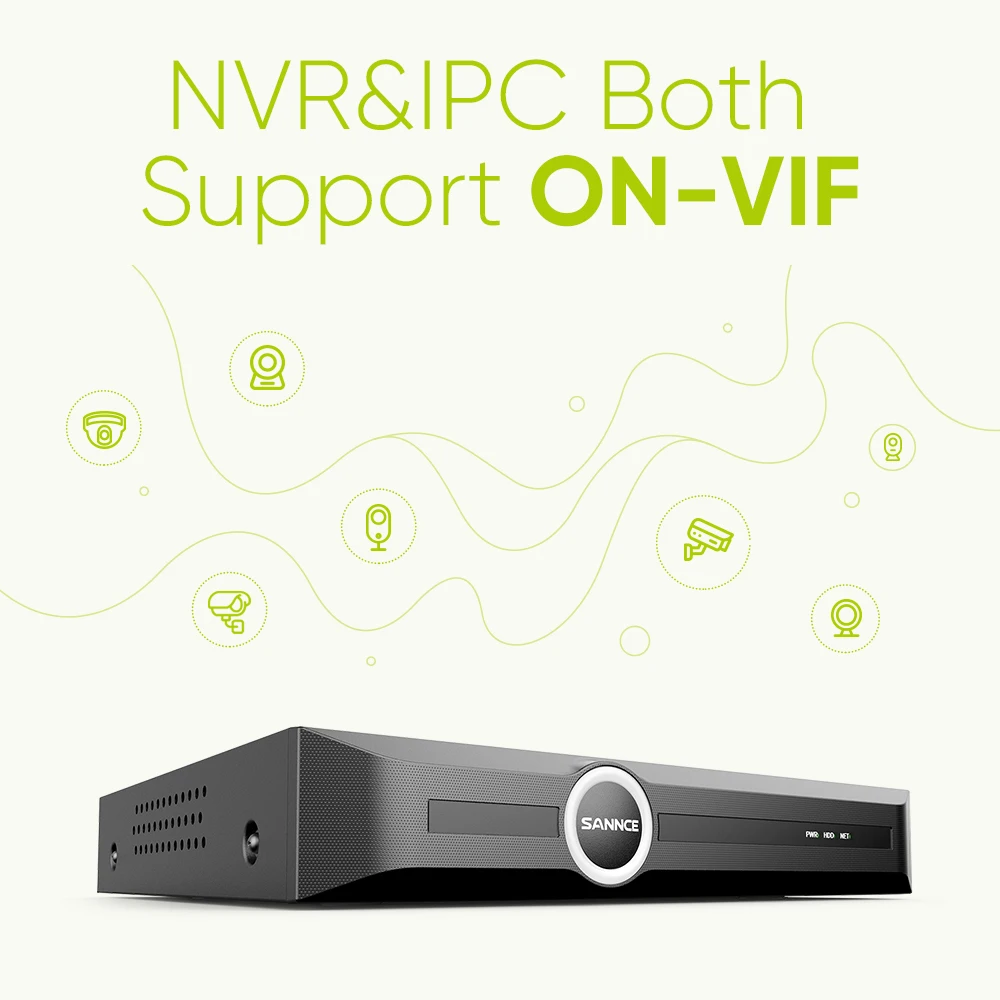

Third-party Camera Access

ONVIF; RTSP

Record Playback

Multi-channel Playback

4

Record Mode

Alarm Recording; Schedule Recording

Storage Method

Local HDD

Backup

USB storage device

Playback Function

Play/Pause/Stop/Slow/Speed/Backwards 30s/Forwards 30s/Full Screen/Backup (Video Editing)/Digital
Zoom

Alarm

General Alarm

Motion Detection; Mask Alarm; Alarm Input(IPC)

Exceptions Alarm

Video Loss; IP Conflict; MAC Conflict; Network Disconnected; No Disk; Illegal Access; Disk Full; Disk R/W
Error; Recording Abnormal; Abnormal found in smart of disk; Abnormal temperature of the disk; PoE
Overload; Voltage Alarm(IPC); RTC Failure

Storage

HDD

1 SATA Interface

HDD Capacity

Up to 6 TB capacity for each HDD

Network

Network Protoco

ARP; DDNS; DHCP; DNS; Easy DDNS; HTTP; ICMP; IGMP; IPv4; IPv6; NTP; RTCP; RTP; RTSP; SSH; TCP/IP;
UDP; Unicast; UPnP

Mobile Phone Access

Android; iOS; P2P

System Compatibility

CGI; SDK

Web

IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+

External Port

USB

2×USB2.0

HDMI

1×HDMI

VGA

1×VGA

Network Interface

1×RJ-45, 10/100 Mbps self-adaptive Ethernet port

PoE

PoE Interface

8×RJ45, 10/100 Mbps self-adaptive Ethernet port

PoE Budget

45W

Power per PoE Port

30W

Standard

IEEE 802.3 af/at

General

UI Language

English;German; French;Italian;Spanish

Operating Power

DC48V 1.35A

Power Consumption

<10W(without HDD&without PoE)

Working Temperature

10 °C to 55 °C (14 °F to 131 °F)

Dimensions (W X H X D)

225 mm × 231 mm × 45.1 mm

Weight (Without Hard Disk)

kg




IP Camera

Camera

Image Sensor

1/2.7" Progressive Scan CMOS

Max resolution

Maximum resolution of main stream: 3MP (2304×1296).
Maximum resolution of sub-stream: 4CIF (704×576).

Main Stream

50 Hz: 25@fps（2304*1296, 1920*1080，1280*720,704*576,640*480）
60 Hz:24@fps（2304*1296）30@fps（1920*1080,1280*720,704*480,640*480）

Wide Dynamic Range

DWDR

Electron Shutter

1s～1/100000s

Image Processing

Support electronic zoom, horizontal flip, vertical flip, video flip, strong light suppression, backlight compensation, fog penetration, day/night mode switching, color to black conversion, white balance, wide dynamic range, electronic fog penetration, 3D digital noise reduction, Smart IR.

Min. Illumination

Color 0.05 lux (@F2.0,AGC ON)；B/W 0.01 lux (@F2.0,AGC ON)；0 lux with IR on

Color to B/W Conversion

Support internal synchronization, black and white, color, and timing settings.

Video Parameters

The image brightness, contrast, saturation, chroma and sharpness are adjustable

Video Blocking

4 pieces

Lens

focal length

4mm Fixed Focal Length Lens

Angle of View

Horizontal FOV 74.7°, vertical FOV 41°, diagonal FOV 86.6°

Aperture

F2.0

Lens Mount Types

M12

Interface Performance

Network Port

1 RJ45 10 M/100 M self-adaptive Ethernet port

Audio Port

Built-in MIC (Pickup Distance of 5m)

Extended Protocol

Onvif Profile S/T

Coding Mode

Video Compression

H.265、S+265、H.264

Video Bitrate

32Kbps~4Mbps

Coding Type

BaseLine Profile/Main Profile/High Profile

Main Stream Default Bitrate

H.265：2Mbps

Transmission Mode

Main and Sub Streams

Audio Compression Algorithm

G.711A/G.711U

Light Function

Number of Infrared LEDs

2 pcs

Night Vision Distance

Up to 100 ft/30 m

Other features

IE Access

Built-in Web 6.0

IP Address

Support static and dynamic IP addresses, and custom network cards

Network Protocol

HTTP，TCP/IP，ICMP，FTP，DHCP，DNS，RTSP，CGI，NTP，UDP

System Time Clock

NTP Time Calibration, Time Zone Setting, Daylight Saving Time

Remote Administration

Network Remote Upgrade, Parameter Settings, and Configuration Import and Export

General Alarm

Motion Detection

General Functions

Support snapshot, one-key recovery, password protection, IP blacklist and whitelist filtering, IP auto-adaptation, and heartbeat.

General

Housing

Plastic

Color

White

Operating Power

PoE (802.3af), Max.3W(Turn on the infrared）

Operating Temperature

-22 °F – 140 °F/-30 °C – 60 °C

Indoor/Outdoor Use

Indoor/Outdoor

Interface Protection

IP67, Level 4 Lightning Protection, Surge Protection up to 2KV.

Dimension (L X W X H)

5.51" X 3.23" X 2.36"/ 140 X 82 X 60mm

Weight

0.55 lb./250g
